Runway Systems

Our equipment is designed with your shop in mind. Whether you have a large, full-capability facility or a small service center, we have custom configurations available for every requirement.

Advanced Aligner Runways

Bee Line Advanced Aligner Runways are multi-functional workhorses for alignment shops, body shops, garages, dealer service centers, tire centers and fleets. They handle all makes of small cars through the heaviest trucks — accommodating vehicles with tread widths from 39” to 94” or 54” to 108” — and feature a choice of 24” or 30” Runway Leg heights.

Key Components:


1 ) PN 885.12D - 24" Heavy Duty Air Jack - Bee Line's Heavy Duty Air Jack provides safe and easy lifting on all Advanced Aligner Runways. Available in 24" or 30" height (878.12D). 3,500 lbs. capacity for every 25 lbs. of air line pressure.

2) PN 29540 - King Pin Turning Aligner - Use with WindSpeed 7500 to electronically measure and display Ackerman Angle, turn radius, KPI and caster without pushing buttons or interpreting a scale. One person can do the alignment measurements, saving time and increasing profits in your shop.

3 ) PN 176 - 24” Support End Leg - Developed to prevent the runway top from deflecting when driving on and off the Turning Aligners. These legs are interchangeable and available in 24” or 30” height (PN 178).

4) PN 174 - 24" Runway Legs - Standard runway legs are interchangeable and can be used with any new or existing installation. Available in 24" or 30" height ( PN 175).

5) PN AR330D - 24" Double Approach Ramps - Fixed approach ramps are used with the Advanced Aligner Runways. These are available in 24" or 30" (AR330D) height.

Space Saver Ramps

Bee Line designed the Space Saver Ramp to be installed in a shorter area than a standard ramp alignment system by reducing the total number of machine sections required. The design of the Space Saver allows the ramp to be raised hydraulically to an operating level equal to the height of the Advanced Aligner Runways.

The Space Saver lifting ramp raises hydraulically, requires less runway sections and ultimately frees up more floor space in your shop. The approach ramp incline angle is perfect for low profile buses and RVs. Drive on without bottoming out and easily clear overhead obstructions.

Space Saver Components

Key Components:

1) PN 885.12D - 24” Heavy Duty Dual Air Jack - Bee Line’s Heavy Duty Air Jack provides safe and easy lifting on all Advanced Aligner Runways. Available in 24” or 30” height (878.12D). 3,500 lbs. capacity for every 25 lbs. of air line pressure.

2) PN 29540 - King Pin Turning Aligner - Use with WindSpeed 7500 to electronically measure and display Ackerman Angle, turn radius, KPI and caster without pushing buttons or interpreting a scale. One person can do the alignment measurements, saving time and increasing profits in your shop.

3) 4 Ft. Removable Sections - Runway Legs are available in 24” and 30” high. The length of the runway section is 45” x 19” wide. Optional 45” x 25” section. Adjustable runway/tire width 45” to 100”. Load capacity is 16 ton per vehicle axle.

4) Space Saver Ramp - The design of the Space Saver allows a major portion of the ramp to be raised hydraulically to an operating level equal to the height of the Advanced Aligner Runways.

5) PN 899 - Stand - Optional stand for hydraulic pump.

6) 900 Series Electric Hydraulic Pump - The pumps allow operation of rams together or separately. They operate on 115V, 10,000 PSI and require 30 amp service.

Lifts

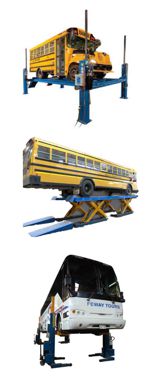

A variety of lifts are manufactured for use in maintenance shops, including heavy duty drive on 4-Post Lifts, Mobile Column Lifts and Scissor Lifts. Lifts can be custom ordered to meet individual customer specifications, and each is tested under numerous temperature and structural stress conditions. These tests ensure a safe and durable lift.

The 4-Post Lift is a cost-effective solution for routine maintenance on an entire fleet. It has minimal set-up time, offers choices in lifting capacities from 12,000 to 80,000 lbs., various runway lengths and includes safety locking legs on each post.

The Scissor Lift is driven by high pressure hydraulic cylinders with no under-vehicle obstructions or horizontal movement. They are designed to be drive-on ramp style or drive-through and recessed into the ground or above ground.

The Mobile Column Lift is a versatile machine, with per column lifting capacities of 12,000 to 40,000 lbs. and tire diameters up to 72 inches. It is equipped with controls that raise and lower vehicles at the same pace to ensure safety, and is easily moved when not in use to open a bay for other purposes.
